Milling machine CNC Microcut MM -430
Manufacturer : MicroCut
Model : MM - 430
Construction year : 2007
State : very good
Status :
Location : Germany
Product category : Metal processing machinery
Reference : PRO3106

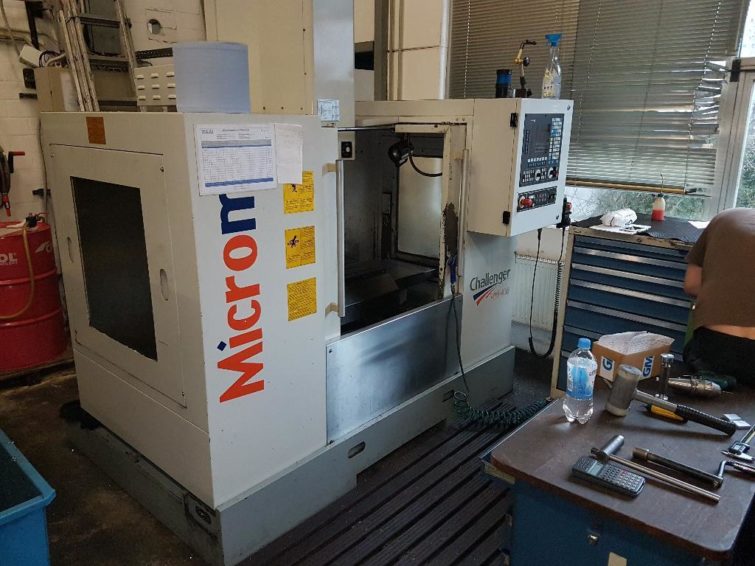

A CNC milling machine of the brand MicroCut from Taiwan is sold. This high precision machine is from 2007 and was used for small parts. These were rarely used.

description

Longitudinal path – x 760 mm
Transverse travel – Y 460 mm
Vertical stroke – Z 460 mm
Fagor 8055 CNC
Number of axles 3
Taper pin 40 ISO
Table surface 900X410 mm
Maximum weight allowed 350 kg on the table
Number of grooves 4
maximum width of the grooves 16 mm
Maximum spindle speed 8000 rpm
maximum distance between the table and the spindle nose 560 mm
Minimum distance between the table and the spindle nose 100 mm
Working height 820 mm
24 tools shop
Change arm (arm type)
Maximum length of 200 mm tools
Maximum weight of 8 kg tool
Maximum tool diameter 130 mm
Fast forward X and Y 24000 mm / min
Fast forward Z 24000 mm / min
Spindle motor 5.5 / 7.5 kW
a total of 15 kW
