Cable recycling assembly Cable shredder COMPACT 180 Turbo
Manufacturer : COMPACT
Model : 180 Turbo
Construction year : 2011
State :
Status :
Location : Germany
Reference : PRO1466

Cable recycling, recycling plant, cable shredder Cable recycling plant COMPACT 180 Turbo

For the processing of: mixed cables, electronic cables, telephone cables, cables for data transmission

Throughput: up to 200 kg / h (INPUT)
Power consumption of the system: approx. 25kW
Dimensions: (L x W x H) 2800 x 1750 x 2200 mm

Weight: approx. 2,000 kg
lnklusive:
Cooling unit; Permanent magnet CU-side mounted;
2 knife sets and perforated sieves

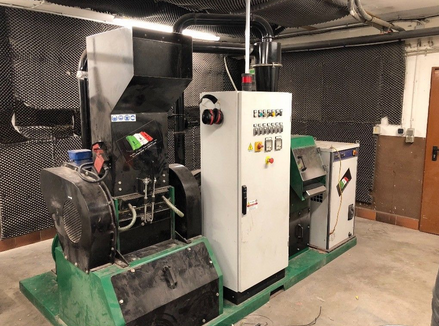

The pictures also show the granulator, the cutting mill, the transport fan, the separator (which separates the copper from the plastic) and cooling for the granulator.

Maximum cable dimension that can be processed with the system:
Length max. 400 mm; Diameter maximum 25 mm;

About every 80 working hours are the 2 bearings on
To lubricate the granulator.

When the GRANULATOR gets particularly loud or as soon as the crushed
Material is dusty, the knives are no longer in optimal condition and
should be exchanged or sharpened!

WEAR:
SEPARATION TABLE
ROTTERING KNIVES (24 PIECES)
Fixed KNIVES (2 PIECES)
LOCHSIEB (UNUSUAL DIAMETER)

GRINDING THE KNIVES:
GRINDING THE ROTATING KNIFE UP TO 4mm max.
GRINDING OF FIXED KNIVES UP TO 4 mm max.

Turbine mill:
DIAMETER 400 mm
3 SHELVING LEVELS
INSTALLED POWER: 11 – 15 kW
Sough tube {outgoing): diameter 100

TECHNICAL SPECIFICATIONS
DIMENSIONS: 2800 X l750 X 2200 mm.
WEIGHT: 1200 Kg.
PRODUCTION: 200 kg / hour (in the throw-in) based on material electric cables
COOLER 630 X 750 X LI20 mm. Weight: 105 Kg. (OPTIONAL)

Original price was 45,000, – € net
